    800HC

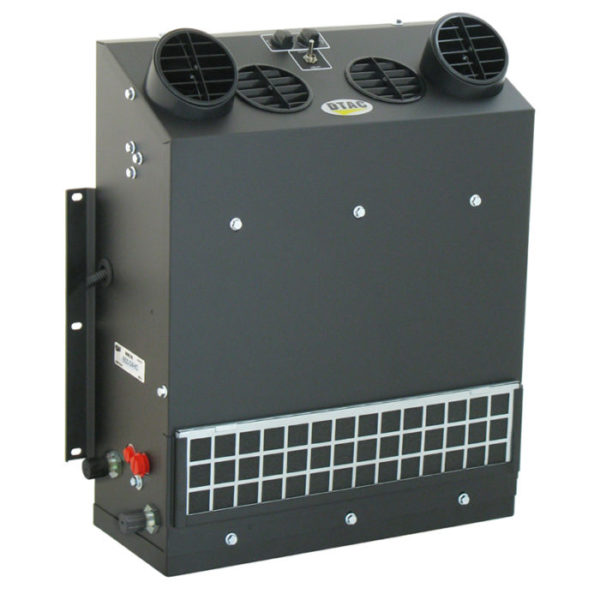

    800-HC Series Evaporator

    HEAT/COOL, WALL MOUNT

    Features

    • Available 12 or 24 volt
    • Three speed blower motor – New Upgraded Blower Assembly
    • Adjustable thermostat
    • Heat and A/C
    • Filtered intake air
    • Easy servicing by removing front panel
    • Steal case with black powder coat finish

    Specifications

    Unit Number BTU’s Heat BTU’s Cool Air flow Height Width Depth Weight Motor Current draw
    800-12HC 26,000 26,000 460 CFM 22″ 18″ 7.5″ 30 LBS 1 – 12v 13.5 amps @ 13.5 vdc
    800-24HC “ “ “ “ “ “ “ 1 – 24v 8 amps @ 27 vdc
    Your inquiry has been sent!
    Send An Inquiry
    Category: . Tags: , , .

    Product Description

    The 800-HC Series is our top selling heat/cool wall mount unit. The new HC model includes and an upgraded blower motor assembly. The coil is reversible for right or left side exit.

    Our 500 and 800 Series offer premium performance in a design that is easily installed and serviced. Removing the front cover provides access to all internal components for maintenance. The 500 Series is designed for road trucks to mount between the seats. A favorite in armored vehicles and larger cabs, the 800 Series provides the performance necessary to keep comfortable in the most demanding conditions and offers an available side mounted adjustable water valve.

    Click here to see the entire family of wall mount units
