    315-12C

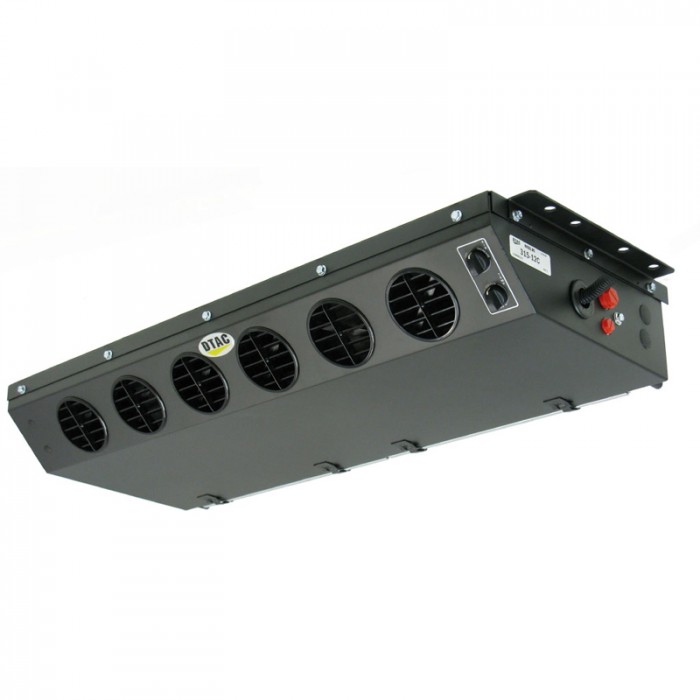

    315-C Series Evaporator

    HEAVY DUTY COOL ONLY, CEILING MOUNT, DUAL BLOWER

    Features

    • Available 12 or 24 volt
    • Heavy duty metal construction eliminates
      broken plastic cases and drain tubes
    • Removable lid for easy access
    • Dual three speed blower motor
    • 6 – 3.5″ directional round louvers
    • Adjustable thermostat
    • Removable, washable filter
    • Low profile for maximum head room

    Options

    • Outside air adapter for pressurization. P/N 11-52104

    Specifications

    Unit Number BTU's Cool Air flow Height Width Depth Weight Motor Current draw
    315-12C 35,000 410 CFM 5″ 35.5″ 14.75″ 48 LBS 2 – 12v 24 amps @ 13.6 vdc
    315-24C “ “ “ “ “ “ 2 – 24v 14 amps @ 27 vdc

    Click here to see the entire family of headliner units

    Your inquiry has been sent!
    Send An Inquiry
    Category: . Tags: , .

    Product Description

    The 315C model is the most popular cool only in the 315 Series.

    The 315 and 330 Series includes our most powerful and top rates headliner units engineered to meet the demands of larger cabs and harsh conditions. Each unit includes a high capacity coil and dual blower motors necessary to keep the operator comfortable. Due to the popularity of the 315 Series it is available is several different configurations.
