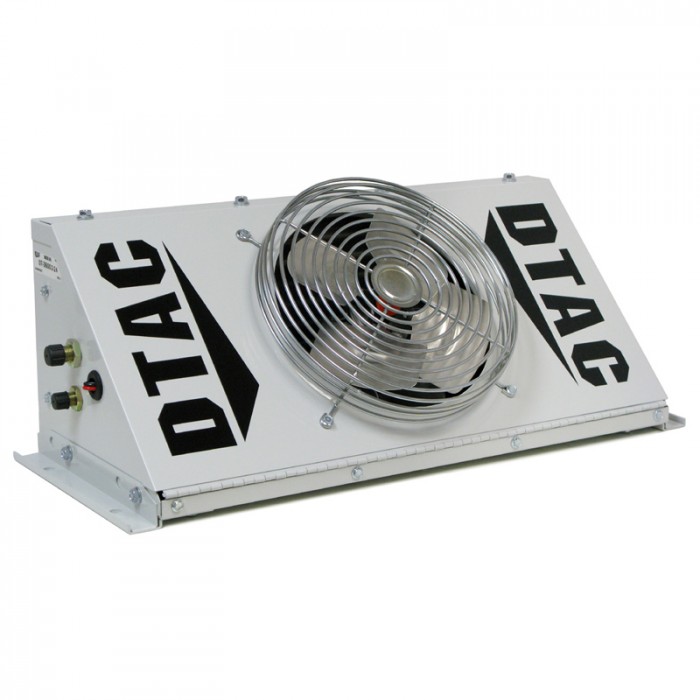

    07-36002-A Series Remote Condenser

    Remote Mounted Condenser, Single Motor with Drier & Water Proof Relay

    Features

    • Includes Water Proof Relay
    • Available 12 or 24 volt
    • Built-in receiver drier with pressure switch
    • Single 1 speed motor
    • One 10″ steel 4 bladed fans
    • Steel case with grey powder coat finish

    Specifications

    Unit Number BTU’s Cool Air flow Height Width Depth Weight Motor Current draw
    07-36002-12A 33,000 740 CFM 12.15″ 29.5″ 13.63″ 42 LBS 1 – 12v 12.6 amps @ 13.6 vdc
    07-36002-24A “ “ “ “ “ “ 1 – 24v 6.4 amps @ 26.8 vdc
    Your inquiry has been sent!
    Send An Inquiry
    Category: . Tags: , .

    Product Description

    The 36002 remote powered condenser is our best selling condenser which includes a built-in drier and binary switch for simplified installation and servicing.

    Engineered to withstand the punishing environments of today’s heavy equipment, the 36002 Series is a workhorse in the off-road industry. The 10″ metal fan blades and sealed permanent magnet motors are built to last. Based on decades of use, the 36002 Series is the premier condenser for heavy equipment A/C systems.

    Click here to see the entire family of remote powered condensers
